광케이블

세계 최고의 원자재와 최고의 완성품으로 고객에게 다가갑니다.

  • Home
  • 제품설명
  • 광케이블

옥외케이블

1. 관로

01. Application

  • Local area network
  • Long haul communication system
  • Subscriber network system
  • Junction communication system
  • Inter building & communication link

02. Features

  • Essential for Duct installation
  • Light weight & flexibility
  • Distinguishable by color of fiber & loose tube
  • Essential for Moisture Protection
  • Rip cord for easy jacket removal
  • UV-resistant outer jacket

03. Cable Data

Ordering Information
Items (Core) No. of Loose Tube No. of Fiber
Per Loose Tube		 Diameter (㎜) Weight (㎏/㎞) Bending Radius
With Load (㎜) No Load (㎜)
2~36 1~6 1~6 11.5 125 230 115
38~72 1~6 1~12 12 140 240 120
74~96 7~8 1~12 14 185 280 140
98~120 9~10 1~12 15.5 220 310 155
122~144 11~12 1~12 17 280 340 170
146~288 13~14 1~12 20.5 370 410 205

04. Ordering Information

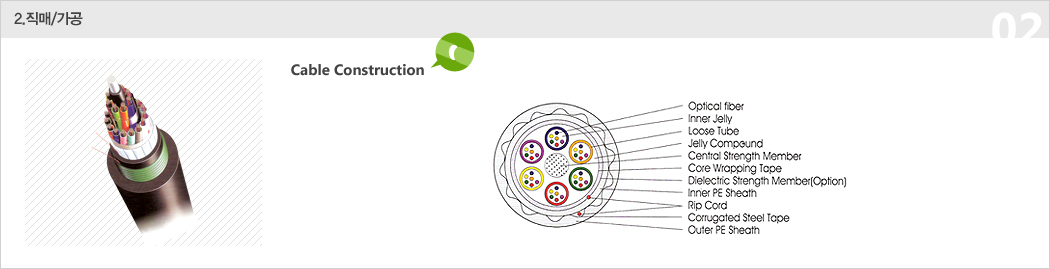

2.직매/가공

01. Application

  • Local area network
  • Long haul communication system
  • Subscriber network system
  • Junction communication system

02. Features

  • Essential for Direct buried installation
  • Essential for Lashed aerial installation
  • Distinguishable by color of fiber & loose tube
  • Essential for anti-rodent
  • Rip cord for easy jacket removal
  • UV-resistant outer jacket

03. Cable Data

Ordering Information
Items (Core) No. of Loose Tube No. of Fiber
Per Loose Tube		 Diameter (㎜) Weight (㎏/㎞) Bending Radius
With Load (㎜) No Load (㎜)
2~36 1~6 1~6 14 210 280 140
38~72 1~6 1~12 14.5 230 290 145
74~96 7~8 1~12 16.5 280 330 165
98~120 9~10 1~12 18 325 360 180
122~144 11~12 1~12 19.5 400 390 195
146~288 13~14 1~12 23 510 460 230

04. Ordering Information

3. 가공

01. Application

  • Local area network
  • Long haul communication system
  • Subscriber network system
  • Junction communication system

02. Features

  • Essential for Aerial installation
  • Non-necessary for suspension wire
  • Decrease in installation cost
  • Distinguishable by color of fiber & loose tube
  • Essential for Moisture Protection
  • Rip cord for easy jacket removal
  • UV-resistant outer jacket

03. Cable Data

Ordering Information
Items (Core) No. of Loose Tube No. of Fiber
Per Loose Tube		 Diameter (㎜) Weight (㎏/㎞) Bending Radius
With Load (㎜) No Load (㎜)
2~36 1~6 1~6 11.5*23.5 210 230 115
38~72 1~6 1~12 12.0*24.0 230 240 120
74~96 7~8 1~12 14.0*26.0 280 280 140
98~120 9~10 1~12 15.5*27.5 325 310 155
122~144 11~12 1~12 17.0*29.0 400 340 170

04. Ordering Information

4. 덕트/간이 관료

01. Application

  • Local area network
  • Inter building & communication link

02. Features

  • Essential for Duct installation
  • Effective installation
  • Light weight & flexibility
  • Decrease in installation cost
  • Distinguishable by color of fiber & loose tube
  • UV-resistant outer jacket

03. Cable Data

Ordering Information
Items (Core) No. of Loose Tube No. of Fiber
Per Loose Tube		 Diameter (㎜) Weight (㎏/㎞) Bending Radius
With Load (㎜) No Load (㎜)
2~12 1 1~2 90 75 180 90

04. Ordering Information
