±¤¾Æ´äŸ

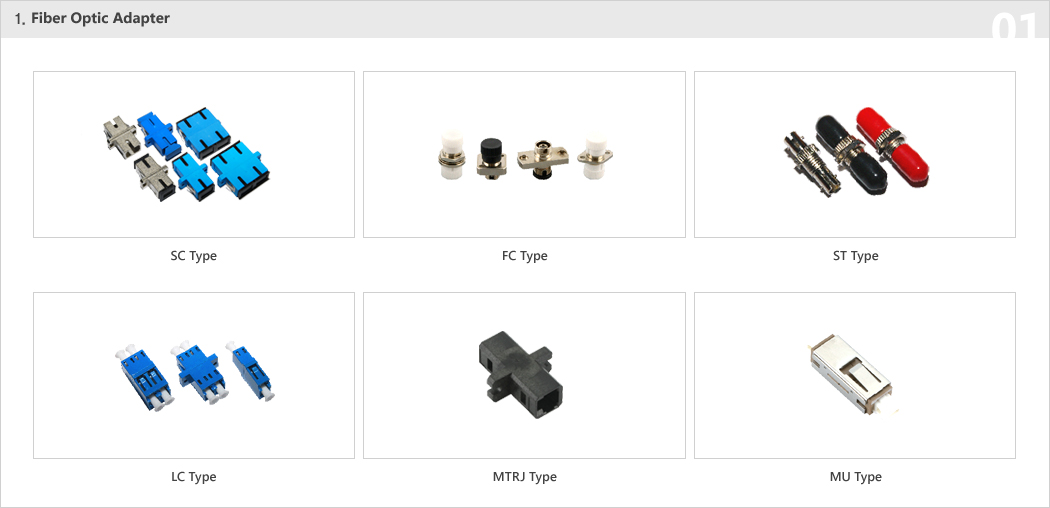

1.Fiber Optic Adapter 2.Fiber Optic Adapter

01. Application

  • Telecommunication Networks
  • DataCommunications Networks
  • Instrumentation
  • CATV Networks
  • Active Device Termination
  • Local Area Networks

02. Features & Benefits

  • Comply with : JIS, IEC, Bellcore
  • Precision sleeve(Zirconia & Bronze)
  • Various type available
  • Integrated body structure

03. Secitication

Secitication
Type Values
Values Satisfied Telcordia
GR-326-CORE
Insertioin Loss ¡Â0.2§¼ (against master connector)
Mating durability ¡Â0.2§¼ (500 times)
Operating temperature stability ¡Â0.3§¼ (-40¡É~+85¡É)

04. Ordering Information

Secitication
Mating Connector Sleeve Color X
Slot width (§®)
S1: SC Simplex L1: LC Simplex Z: Zirconiz B: Blue N: 2.15~2.20
SV: SC Duplex vertical L2: LC Duplex horizontal B: Bronze G: Green R: 2.03~2.08
SH: SC Duplex horizontal M1: MU Simplex   Q: Option * Only FC Type
S4: SC Quadplex M2: MU Duplex horizontal
FR: FC Simplex round MR: MT-RJ
FQ: FC Simplex square SS: SC to ST
FF: FC Simplex flange FS: FC to SC
ST: ST Simplex
